18650 identification, test-sorting and data system
Combine cell conveying, barcode reading, testing, binning and statistics.
System components and data association
The equipment comprises transport, scanning, testing, sorting and control systems. Cells are conveyed to test positions; scanned identifiers are associated with stored results, and the controller coordinates subsystem operation.
The sorting mechanism routes cells into configured grades and supports counts, test records and result queries. Sorting criteria and data fields are determined by product requirements, cell condition and downstream processing.
Test options and integration
Basic electrical testing can include voltage and internal resistance. Visual inspection, capacity or charge/discharge evaluation require corresponding stations and instruments. Test durations, conditions and acceptance criteria are set individually, with results linked to sorting grades.
The equipment supports cylindrical-cell testing and sorting. Other cell sizes require checks of conveying, clamping and contacts. Operator interfaces, settings and maintenance arrangements follow the project configuration.

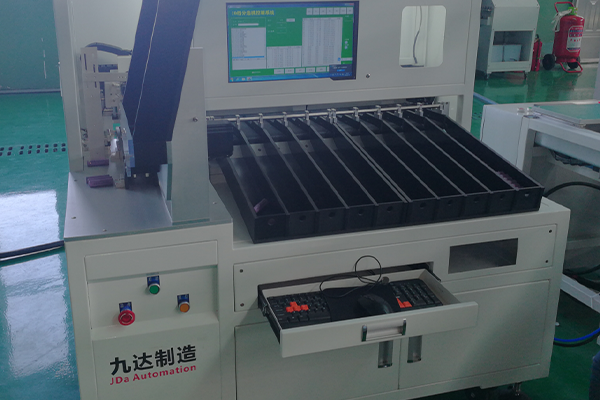

Equipment photographs
